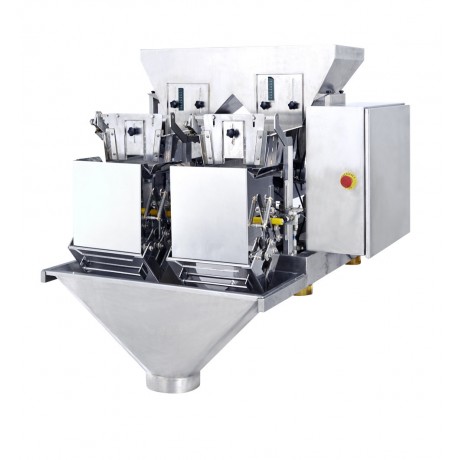

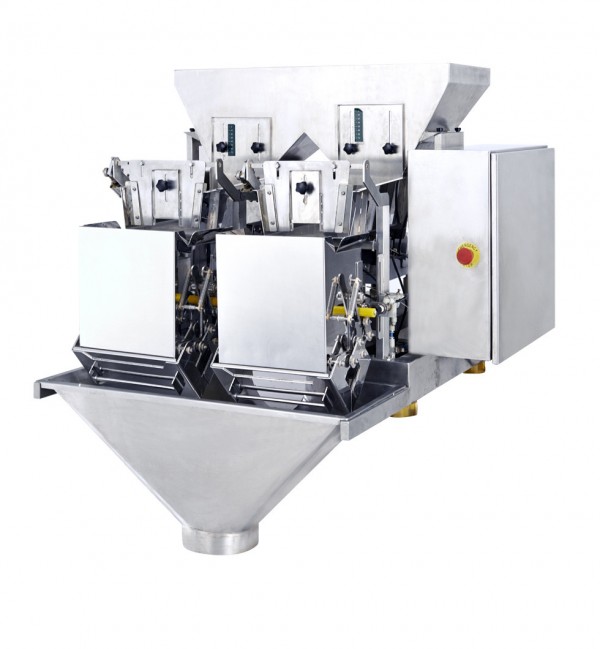

Linear weighers LV 2
The Linear weighers LV 2 is made with an INOX SUS 304 stainless steel structure. The LV dosing line has been designed to automatically weigh all medium grain products up to a maximum of 3000 Gr.
Features
§ Compact design
§ Structure in stainless steel SUS 304
§ Digital cells with high performance
§ User-friendly touch screen
§ Control panel protected by password
§ Double vibrating plan
§ Weighing parameters displayed also during the cycle
§ Emergency detection system with easy-to-use troubleshooting for easy resolution
§ Weighing and pre-dosage baskets opening by stepper motors
§ Control panel with digital display 7’
§ Man/Aut mode
§ USB port for upgrade and backup
§ Machine complies to the CE directives
Description
Linear weigher automatically for medium grain products up to a maximum of 3000 Gr. The electronic linear dosing systems with vibrating channels, LW series, are the perfect solution to weight automatically all the products of medium granulometry (up to 3000 Gr.). The precision in the weighing is ensured by 2 independent roughing and finishing vibrating channels at various vibrations. The hoppers, baskets and vibrating channels can be customized and in this way it is possible to dose all the range of products. LW machines can create up to 4 MIX of various products. The LW dosing systems have from 2 weighing heads and can be coupled with the automatic packaging machines when needed.
Specification:
|
Power supply |
220 volts 1 ph – 50 Hz |
|
Installed power |
1 Kw |
|
Mix materiali |
2 |
|
Range weight |
1000 – 3000 Gr |
|
Max production |
Up to 25 boxes/min |
|
Weight tolerance |
+/- 0,1 – 3,0 Gr. |
|
Weigh bucket |
5 liter |
|
Drive motor |
stepper motor |
