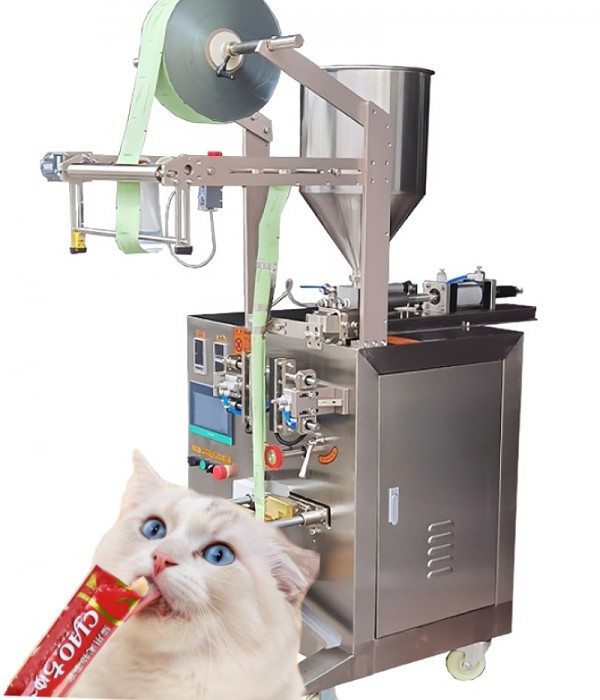

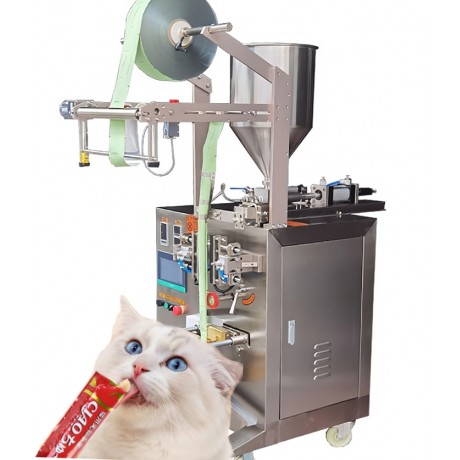

Food-Grade Stainless Steel Stick Pack Machine for Pet Food Paste
- Designed for high-efficiency production with accurate dosing and clean, customizable packaging.
- Ideal for consistent, mess-free filling and premium stick pack presentation.
Specification
This automatic stick pack machine is specifically engineered for high-viscosity pet food pastes, such as cat lickable treats, dog nutritional gels, and functional supplements. Made entirely from SUS304 food-grade stainless steel, it ensures hygienic, safe, and efficient packaging in stick pack format, which has become a global standard in the premium pet snack segment.
With precision piston filling, anti-drip nozzle control, and customizable pouch size, this machine is ideal for manufacturers aiming for high output, consistent quality, and premium shelf appearance.
Key Features
-
Hygienic Design: All product-contact parts are made of SUS304 stainless steel with polished surfaces, ensuring easy cleaning and long-term corrosion resistance.
-
Precision Dosing: Servo-driven piston filler ensures accurate weight even with variable-viscosity pastes.
-
Drip-Free Filling: Specially designed nozzles eliminate paste stringing and reduce seal contamination.
-
Stable Stick Pack Formation: Consistent tension and sealing temperature ensure visually appealing stick packs.
-
Customizable Size: Supports multiple pouch widths and fill weights for different product lines.
-
User-Friendly Control: Equipped with a PLC system and touchscreen for intuitive operation and quick parameter adjustments.
Technical Specifications (Reference Only)
| Item | Specification |
|---|---|
| Packaging Speed | 40–55 bags/min (depending on product and pack size) |
| Filling Range | 10–100g (customizable) |
| Film Width | 60–240mm (supports multi-lane configuration) |
| Voltage / Power | 220V / 2.2KW |
| Applicable Products | Cat treats, dog nutritional paste, fruit puree, sauces, and other viscous pastes |
| Material | Product-contact parts made of SUS304 stainless steel |
| Control System | PLC + Touchscreen + Photoelectric Positioning |
Features
Common Challenges Faced by Buyers
Our food-grade stainless steel stick pack machine for pet food is specifically engineered to address the following production issues:
| Problem | Description | Our Solution |
|---|---|---|
| Inaccurate filling | Viscosity variations of pet paste can lead to weight inconsistencies | Equipped with a high-precision piston filling system and temperature control |
| Leaking seals or poor appearance | Paste residue at the seal zone can cause sealing failures | Integrated anti-drip nozzles and bag-mouth cleaning system |
| Unstable stick pack shape | Inconsistent heat sealing or uneven film tension leads to poor presentation | Uniform heat sealing and shaping system for tight, attractive packs |
| Uneven filling across multiple lanes | Multilane systems may deliver different volumes per lane | Independent pump control with adjustable settings for each channel |
| Difficult cleaning and hygiene risks | High-viscosity paste can accumulate in pipelines and hoppers | Easy-to-clean stainless steel structure with detachable contact parts |
| Downtime during format changes | Changing stick width or fill weight often leads to long stoppages |
Quick-change film roller and flexible format adjustment system |
Meeting Buyer Needs – Explicit and Hidden
Core Needs We Fulfill (Explicit Demand)
-
Precise fill weights for export and compliance
-
Clean and strong sealing for leak-proof retail products
-
Stainless steel construction to meet hygiene audits
-
Stable output speed for high-volume orders
-
Multi-lane options for increased productivity
Hidden Needs We Understand (Latent Demand)
-
Reduced Labor Cost: Fully automatic operation reduces the need for skilled labor.
-
Better Brand Presentation: Uniform stick packs improve shelf display and brand image.
-
Flexible Product Line Expansion: One machine adapts to various product types and pack sizes.
-
After-Sales Peace of Mind: We offer one-on-one technical support and spare parts service.
Applications
-
Cat lickable sticks / lick treats
-
Dog nutritional gels and supplements
-
High-protein wet snacks
-
Functional pet pastes (digestive, dental, vitamin)
