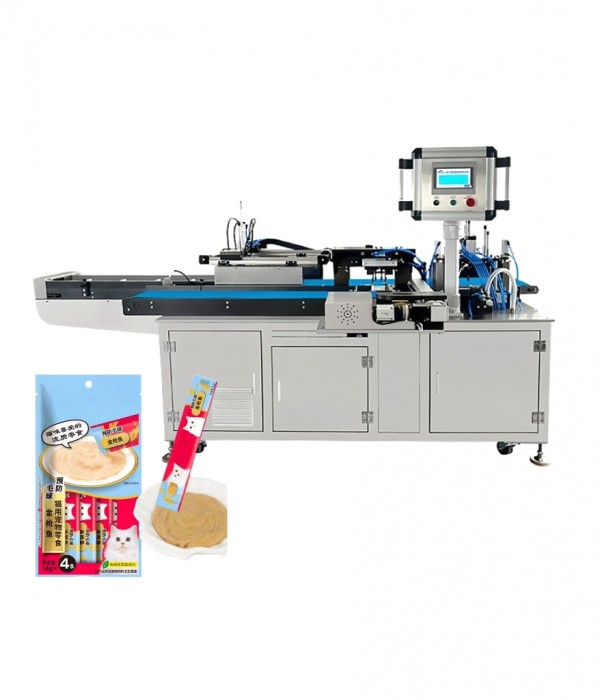

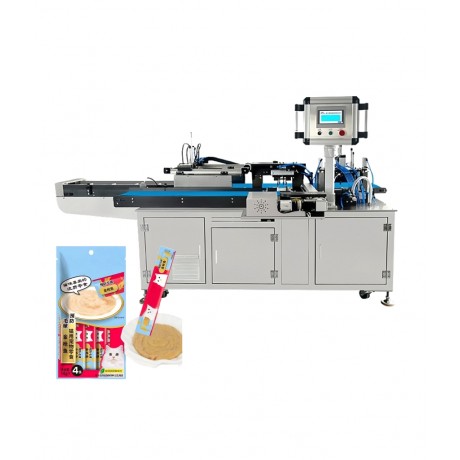

Automatic Pouch Inserting Machine for Cat Wet Food Stick Packs
Specification
| No. | Item | Specification |
|
|---|---|---|---|
| 1 | Machine Dimensions | 2885 × 1392 × 1548 mm | |
| 2 | Machine Weight | Approx. 1200 kg | |
| 3 | Input Voltage | 380V / 50Hz | |
| 4 | Total Power | 5.0 kW | |
| 5 | Suitable Bag Width | 80–200 mm | |
| 6 | Suitable Bag Length | 150–350 mm | |
| 7 | Vacuum Pump | 380V, 3.0 kW |
|
| 8 | Main Centrifuge Motor | 380V, 1.5 kW | |
| 9 | Sealing Heater | 220V, 400 W | |
| 10 | Servo Motors | Panasonic |
|
| 11 | Frame Material | Stainless Steel 304 | |
| 12 | Production Speed | 12–18 packs/min |
|
Features
Efficient Stick Pack Grouping and Outer Pouch Packaging Solution
This machine is specially designed for products like cat treat sticks, medical masks, hygiene items, hardware, and food products that require automatic grouping and inserting into branded pouches. It ensures clean appearance, precise alignment, and strong sealing for retail-ready secondary packaging.
Product Features
-
Stable and continuous operation, suitable for a wide range of industries.
-
Fully automatic pouch loading with photoelectric alignment and precise sealing—no rough edges or pouch deformation.
-
Configurable feeding systems based on product type.
-
Equipped with Panasonic servo motors, offering higher precision and improved stability across the entire operation.
-
Intermittent sealing mechanism ensures neat, firm seals and avoids leakage.
-
User-friendly PLC touchscreen with multilingual interface (Spanish, French, Arabic, Korean, Russian, Japanese, etc.). Temperature and speed can be easily adjusted based on pouch material and product thickness.
-
Stainless steel construction for a clean look, easy maintenance, and durability.
-
Intelligent temperature control via PLC.
-
Built-in batch counting and stacking functions with automatic alert when the set quantity is reached.
-
Supports quick switch between different pouch sizes and grouped product lengths.
