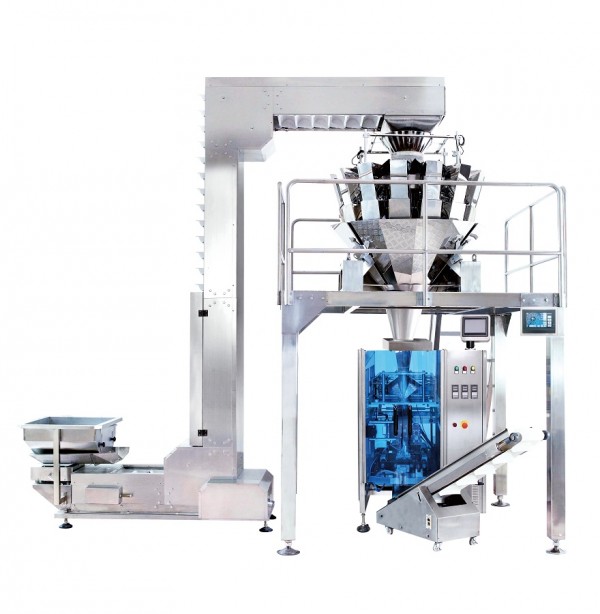

Multi-head Weigher VFFS Packaging Machine
Features
Technical Para:
|
Control |
PLC Controlled |
|
Mode of Operation |
Pneumatic |
|
Model |
UA - 091 |
|
Dimension |
1800*1800*3350 mm |
|
Filling Speed |
1000 to 4000 pouches/hr (Depending upon the Size) |
|
Filling Capacity (Range) |
10gms - 1Kg |
|
Packaging Material |
Any heat sealable Laminated Films |
|
Power Requirement |
420V AC Three Phase,50Hz |
|
Compressed Air Req |
6CFM @ 4Kg/cm |
|
Weight |
1400 kg |
|
Minimum Order Quantity |
1 |
Description
Description:
UNIQUE PACKAGING SYSTEMS offer Multi-head Weigher VFFS Packaging Machine for Kurkure and Potato Chips, Chiwda, Namkeen, Dry-Fruits, Grains. Highly suitable for Kurkure and Potato Chips, Chiwda, Namkeen, Dry-Fruits, Grains, Tea, Sugar, Seeds etc.
Machine list in this system:
①Vibrating feeder and Z type lifter
②10 head weigher
③Main vertical packaging machine
④ platform
⑤ finish product conveyor
Feature:
The system will finish all the process automatically: feeding, dosing, filling, sealing, date printing and finish product conveying. It has the advantages of high accurate weighting, high efficiency without broken material.
