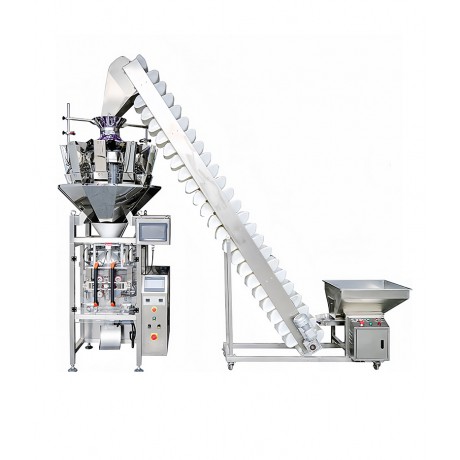

VFFS Packaging Machine for Granules
Features
General Characteristics of the VFFS Packaging Machine for Granules
The Mini Vert 240 PP vertical machine is controlled by a Mitsubishi PLC managed by a color touch screen control panel. The structure is made entirely of SUS 304 stainless steel. The filling of the packages can be adjusted from 1 ml to 50 ml with a length from 25 to 60 mm.
Description
Description:
Automatic VFFS Packaging Machine for Granules with reduced dimensions and easy to use. Widely used to package all kinds of grains or granules, such as coffee, sugar, salt, rice, seeds, seasoning, pepper, desiccant, etc.
|
Power supply |
220 volts 1 ph – 50 Hz |
|
Power |
1,5 Kw |
|
Materials |
Completely in SUS 304 stainless steel |
|
Air consumption |
0.6 Mpa, 0.3 cbm/min |
|
Machine Size |
L 1150 x W 900 x H 1700 mm |
|
Net weight |
200 Kg |
|
Control system |
PLC + Color touch screen |
|
Weighing system |
Piston pump |
|
Fill volume |
from 3 ml to 20 ml |
|
Pouch size |
L 40-170 mm, W 15-120 mm |
|
Speed per minute |
40-60 bags |
|
Welding and cutting |
Smooth or zigzag |
|
Type of packaging |
Coupled nylon / polyethylene, Packs welded on 2 sides and on the back, Packs welded on 3 sides, Packs welded on 4 sides |
|
Functions |
Automatic Weighing, Filling, Welding, Cutting and Code Printing (optional) |
|
Usable films |
Coupled Aluminum / polyethylene, Coupled BOPP / polyethylene, Polythene paper, Cellophane / polyethylene |
|
Film width |
50-240 mm, 50-260 mm |
